Product Summary

The E818AHF is an octal pin electronics driver and window comparator fabricated in a wide voltage CMOS process. The E818AHF is designed specifically for Test During Burn In (TDBI) applications, where cost, functional density, and power are all at a premium. Applications are (1)burn in ATE; (2)low cost ATE; (3)instrumentation.

Parametrics

E818AHF absolute maximum ratings: (1)Total Power Supply VCC - VEE: -0.5 to 19.0 V; (2)Digital Input Voltages DATA, EN: VEE - .5 to VCC + .5 V; (3)Analog Input Voltages VH, VL, CVA, CVB, VINP, VBB: VEE - .5 to VCC + .5 V; (4)Analog Output Voltages DOUT, COMP HIGH, COMP LOW: VEE - .5 to VCC + .5 V; (5)Ambient Operating Temperature TA: -50 to +125°C; (6)Storage Temperature TS: -65 to +150°C; (7)Junction Temperature TJ: +150°C; (8)Soldering Temperature (5 seconds, .25 from the pin)TSOL: +260 °C.

Features

E818AHF features: (1)18V I/O Range; (2)50 MHz Operation; (3)Per Pin Flexibility; (4)Programmable Input Thresholds; (5)Flex In Digital Inputs; (6)Flex Out Digital Outputs; (7)Small footprint (100 pin MQFP).

Diagrams

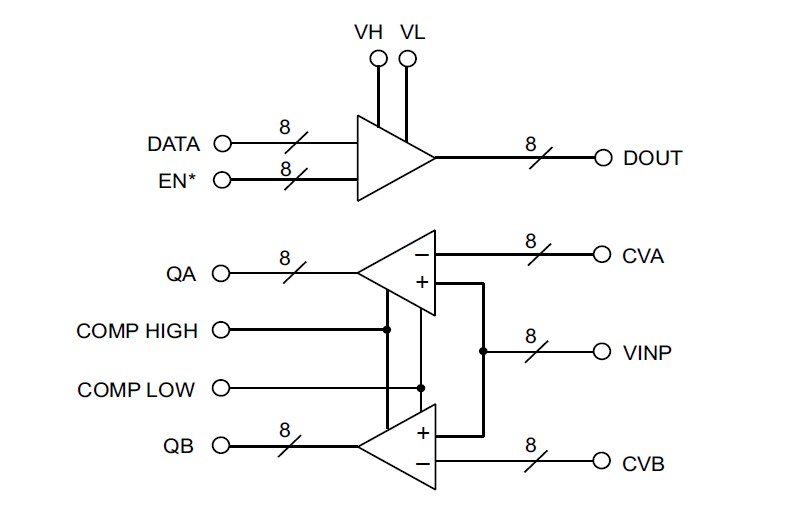

E818AHF pin connection
