Product Summary

The ATA66140 is a System-in-Package (SiP) product, which is particularly suited for complete LIN-bus slave-node applications. The ATA66140 supports highly integrated solutions for in-vehicle LIN networks. The ATA66140 is the LIN-system-basis-chip (LIN-SBC) , which has an integrated LIN transceiver, a 5V regulator and a window watchdog. The second chip is an automotive microcontroller from Atmels series of AVR 8-bit microcontroller with advanced RISC architecture.

Parametrics

ATA66140 absolute maximum ratings: (1)Supply voltage VS VS: –0.3 to +40 V; (2)Output current NRES INRES: +2 mA; (3)Junction temperature Tj: –40 +150 °C; (4)Storage temperature Ts: –55 +150 °C; (5)Thermal shutdown of VCC regulator: 150 to 170 °C; (6)Thermal shutdown of LIN output: 150 to 170 °C; (7)Thermal shutdown hysteresis: 10 °C.

Features

ATA66140 features: (1)Single-package Fully-integrated AVR 8-bit Microcontroller with LIN Transceiver, 5V Regulator and Watchdog; (2)Very Low Current Consumption in Sleep Mode; (3)8 Kbytes/16 Kbytes Flash Memory for Application Program (ATA6612/ATA6613); (4)Supply Voltage Up to 40V; (5)Operating Voltage: 5V to 27V; (6)Temperature Range: Tcase –40°C to +125°C; (7)QFN48, 7 mm × 7 mm Package.

Diagrams

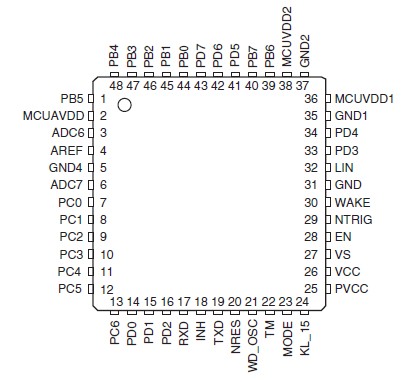

ATA66140 pin connection
