Product Summary

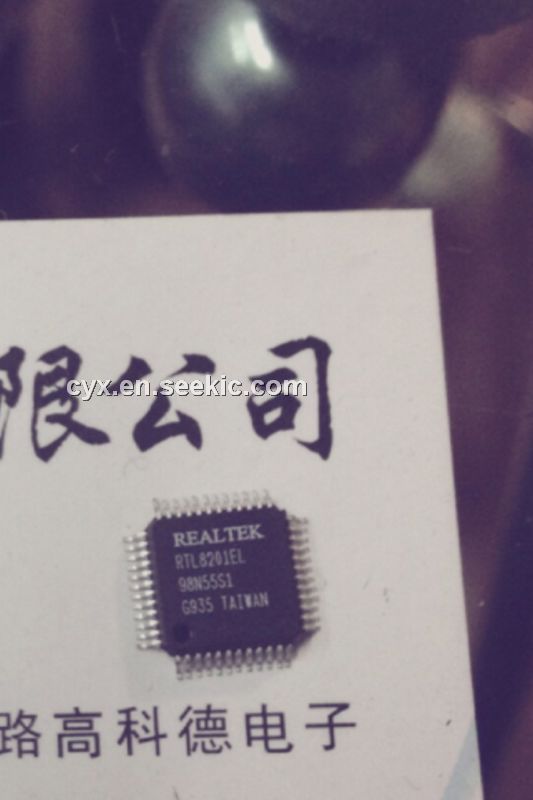

The RTL8201EL is a Fast Ethernet Phyceiver with selectable MII or SNI interface to the MAC chip. The RTL8201EL implements all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-Tx Encoder/Decoder and Twisted Pair Media Access Unit (TPMAU). The RTL8201EL is fabricated with an advanced CMOS process to meet low voltage and low power requirements.

Parametrics

RTL8201EL absolute maximum ratings: (1)Supply Voltage: 3.0V to 3.6V, 3.3V typ; (2)Storage Temp.: -55℃ to 125℃.

Features

RTL8201EL features: (1)Supports MII/7-wire SNI (Serial Network Interface) interface; (2)Supports 10/100Mbps operation; (3)Supports half/full duplex operation; (4)Support of twisted pair or Fiber mode output; (5)IEEE 802.3/802.3u compliant; (6)Supports IEEE 802.3u clause 28 auto negotiation; (7)Supports power down mode; (8)Supports operation under Link Down Power Saving mode; (9)Supports Base Line Winder (BLW) compensation; (10)Supports repeater mode; (11)Speed/duplex/auto negotiation adjustable; (12)3.3V operation with 5V IO signal tolerance; (13)Low operation power consumption and only need single supply 3.3V; (14)Adaptive Equalization; (15)25MHz crystal/oscillator as clock source; (16)Multiple network status LED support; (17)Flow control ability support to co-work with MAC (by MDC/MDIO); (18)48 pin LQFP package.

Diagrams

RTL8201EL pin connection
