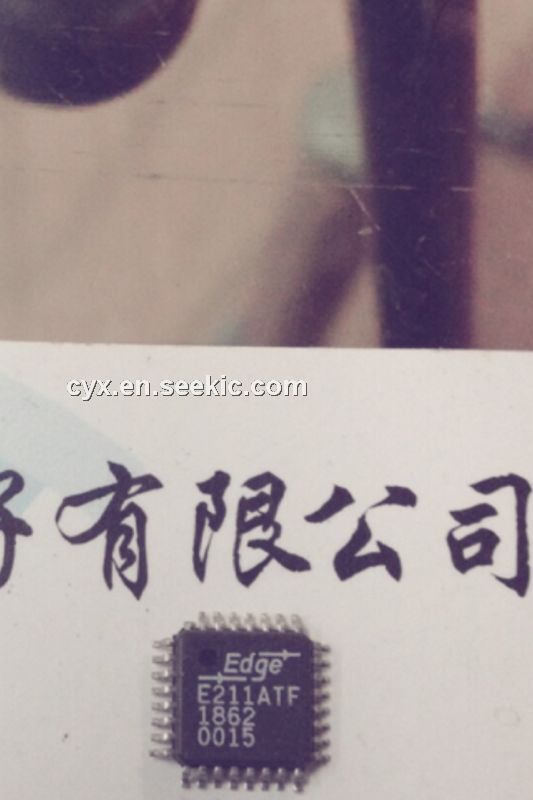

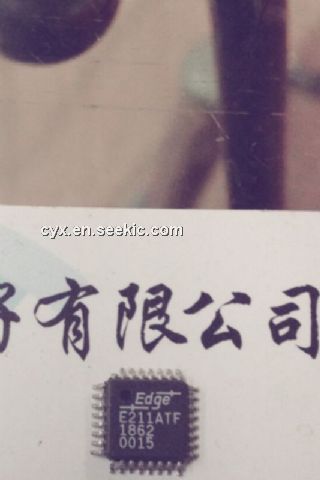

Product Summary

The E211ATF is a dual trinary driver manufactured in awide voltage CMOS process. The E211ATF is designed for automatictest equipment and instrumentation where cost, functionaldensity, and power are all at a premium. The E211ATF is capable of generating 3 levels -one for a logic high, one for a logic low, and one for eithera termination voltage or a special programming voltage. Applications are Low Cost Automated Test Equipment.

Parametrics

E211ATF absolute maximum ratings: (1)Total Analog Power Supply VCC - VEE: 0 to 13 V; (2)Positive Analog Power Supply VCC: 0 to 13 V; (3)Negative Analog Power Supply VEE: -6 to 0 V; (4)Analog Input Voltages VEE: -5 to VCC + .5 V; (5)Digital Inputs VEE: -5 to VCC + 5 V; (6)Ambient Operating Temperature TA: -55 to +125 °C; (7)Storage Temperature: -65 to +150 °C; (8)Junction Temperature TJ: +150°C; (9)Soldering Temperatureto: 260 °C.

Features

E211ATF features: (1)100 MHz Operation; (2)12V I/O Range; (3)Programmable Output Levels; (4)Flex In digital Inputs (Technology Independent); (5)Three Level Driver; (6)Extremely Low Leakage Currents (~0 nA); (7)Small Footprint (32 Pin, 7 mm X 7 mm, TQFP Package).

Diagrams

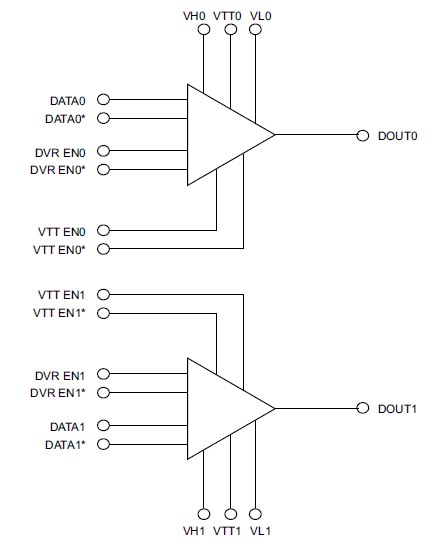

E211ATF pin connection
