Product Summary

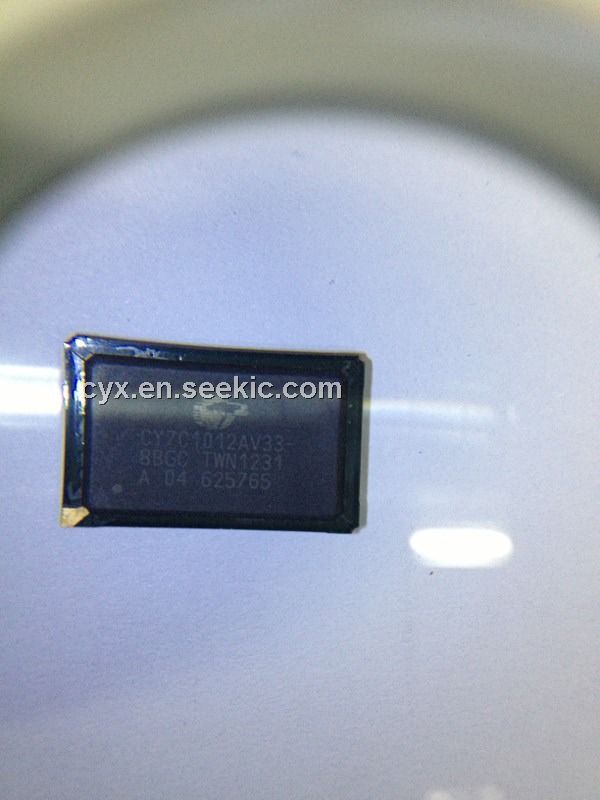

The CY7C1012AV33-BBGC is a high-performance CMOS static RAM organized as 512K words by 24 bits. The 24 I/O pins (I/O0–I/O23) are placed in a high-impedance state when all the CY7C1012AV33-BBGC selects are HIGH or when the output enable (OE) is HIGH during a READ mode. For further details, refer to the truth table of this data sheet. The CY7C1012AV33-BBGC is available in a standard 119-ball BGA.

Parametrics

CY7C1012AV33-BBGC absolute maximum ratings: (1)Storage Temperature : –65°C to +150°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Supply Voltage on VCC to Relative GND[1] : –0.5V to +4.6V; (4)DC Voltage Applied to Outputs in High-Z State[1] : –0.5V to VCC + 0.5V, DC Input Voltage[1] : –0.5V to VCC + 0.5V; (5)Current into Outputs (LOW): 20 mA.

Features

CY7C1012AV33-BBGC features: (1)High speed —tAA = 8, 10, 12 ns; (2)Low active power —1080 mW (max.); (3)Operating voltages of 3.3 ± 0.3V; (4)2.0V data retention; (5)Automatic power-down when deselected; (6)TTL-compatible inputs and outputs; (7)Easy memory expansion with CE0, CE1 and CE2 features.

Diagrams

CY7C1012AV33-BBGC pin connection
