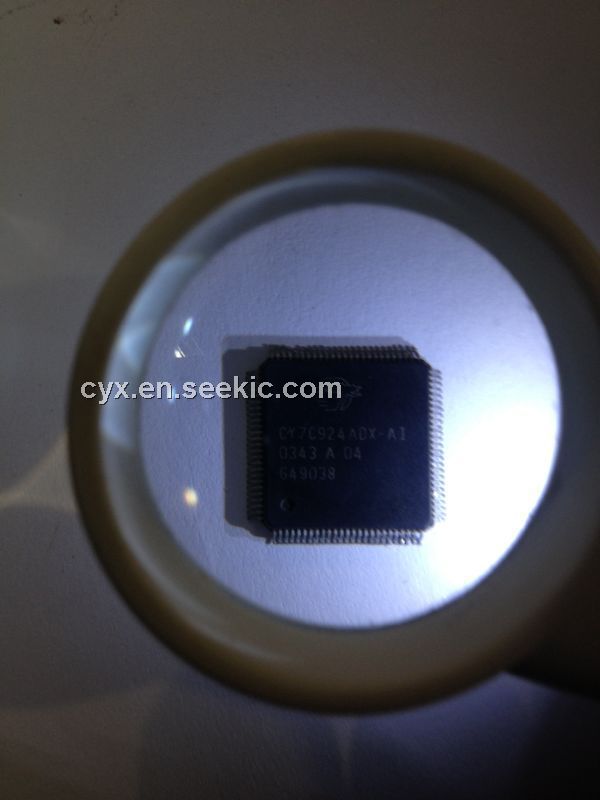

CY7C924ADX-AI

CY7C924ADX-AI, HOTLink Transceiver, 6.5V, 30 mA, QFN

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~8.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 50 :	8.20 / Piece
100 ~ 500 :	7.90 / Piece
501 ~ 2000 :	7.00 / Piece

PartNumber:: CY7C924ADX-AI

Brand:: Cypress Semiconductor - Cypress | Pack: QFN | D/C: 11+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Nicole's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-16

From Other Seller

Part Number:CY7C924ADX-AI
US $7.00 - 8.20
Quantity:

piece

Product Summary

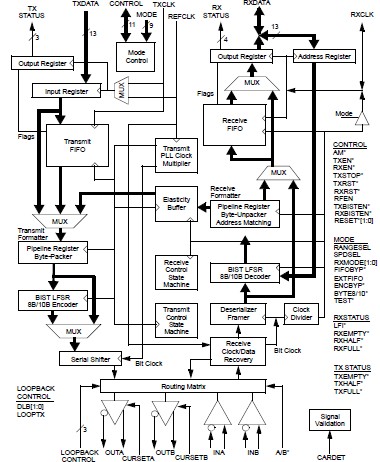

The CY7C924ADX-AI HOTLink Transceiver is a point-to-point communications building block allowing the transfer of data over high speed serial links (optical fiber, balanced, and unbalanced copper transmission lines) at speeds ranging between 50 and 200 MBaud. The CY7C924ADX-AI is ideal for a variety of applications where parallel interfaces can be replaced with high speed, point-to-point serial links. Some applications include interconnecting workstations, backplanes, servers, mass storage, and video transmission equipment.

Parametrics

CY7C924ADX-AI absolute maximum ratings: (1)Storage Temperature : –65°C to +150°C; (2)Ambient Temperature with Power Applied: –55°C to +125°C; (3)Supply Voltage to Ground Potential : –0.5V to +6.5V; (4)DC Voltage Applied to Outputs in High-Z State : –0.5V to VDD + 0.5V; (5)Output Current into TTL Outputs (LOW): 30 mA; (6)DC Input Voltage : –0.5V to VDD + 0.5V; (7)Static Discharge Voltage: > 2001 V (per MIL-STD-883, Method 3015); (8)Latch-up Current: > 200 mA.

Features

CY7C924ADX-AI features: (1)10 or 12 bit preencoded data path (raw mode); (2)8 or 10 bit encoded data transport (using 8B/10B coding); (3)Synchronous or asynchronous TTL parallel interface; (4)UTOPIA compatible host bus interface; (5)Embedded/Bypassable 256-character synchronous FIFOs; (6)Integrated support for daisy-chain and ring topologies; (7)Domain or individual destination device addressing; (8)50 to 200 MBaud serial signaling rate; (9)Internal PLLs with no external PLL components; (10)Dual differential PECL compatible serial inputs; (11)Dual differential PECL compatible serial outputs; (12)Compatible with fiber optic modules and copper cables; (13)Built-In Self-Test (BIST)for link testing; (14)Link Quality Indicator; (15)Single +5.0V ±10% supply; (16)100-pin TQFP; (17)0.35μ CMOS technology; (18)Pb-free package available.
