Product Summary

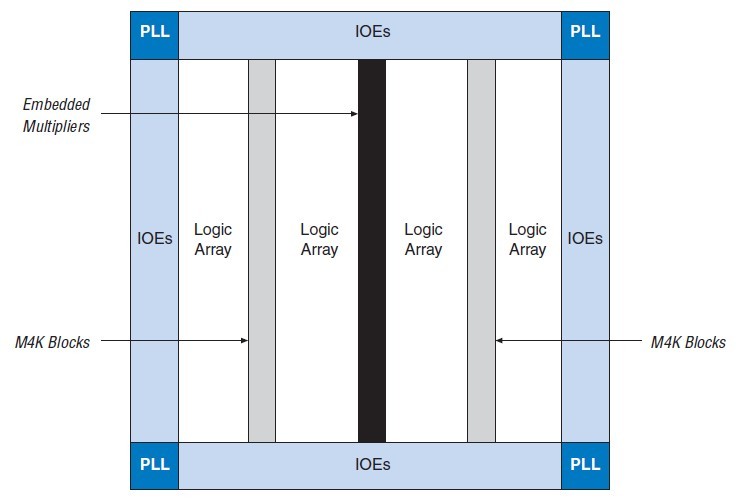

The EP2C5F256C8N is a FPGA. The EP2C5F256C8N contains a two-dimensional row- and column-based architecture to implement custom logic. It is manufactured on 300-mm wafers using the 90-nm low-k dielectric process of TSMC to ensure rapid availability and low cost. By minimizing silicon area, the EP2C5F256C8N can support complex digital systems on a single chip at a cost that rivals that of ASICs.

Parametrics

EP2C5F256C8N absolute maximum ratings: (1)On the condition of with respect to ground, VCCINT Supply voltage: -0.5V to 1.8V; (2)On the condition of with respect to ground, VCCIO Output supply voltage: -0.5V to 4.6V; (3)On the condition of with respect to ground, VCCA_PLL [1..4] PLL supply voltage: -0.5V to 1.8V; (4)VIN DC input voltage: -0.5V to 4.6V; (5)IOUT DC output current, per pin: -25mA to 40mA; (6)On the condition of no bias, TSTG Storage temperature: -65℃ to 150℃; (7)On the condition of BGA packages under bias, TJ Junction temperature: 125℃.

Features

EP2C5F256C8N features: (1)M4K embedded memory blocks; (2)Up to 1.1 Mbits of RAM available without reducing available logic; (3)4,096 memory bits per block (4,608 bits per block including 512 parity bits); (4)Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36; (5)True dual-port (one read and one write, two reads, or two writes) operation for ×1, ×2, ×4, ×8, ×9, ×16, and ×18 modes; (6)Byte enables for data input masking during writes; (7)Up to 260-MHz operation.

Diagrams

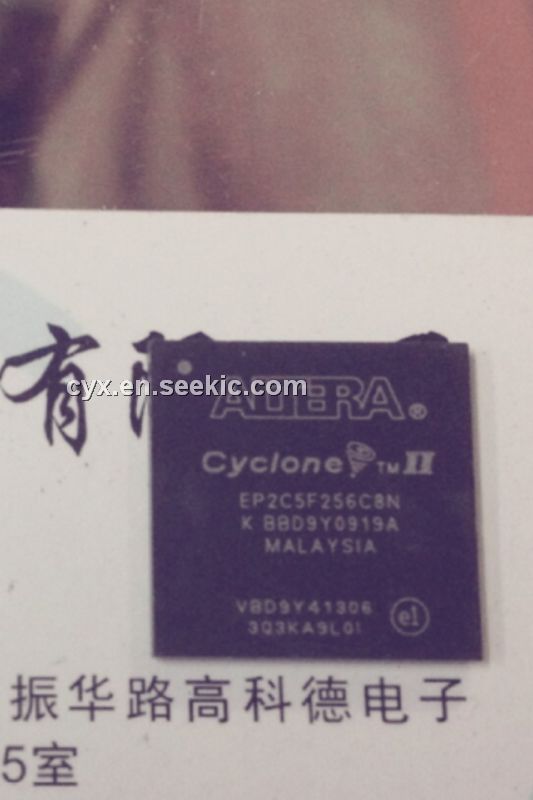

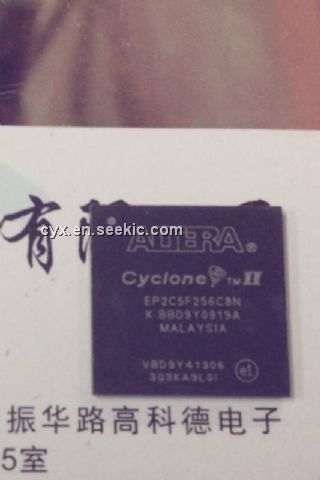

EP2C5F256C8N pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EP2C5F256C8N
EP2C5F256C8N


IC CYCLONE II FPGA 5K 256-FBGA

Data Sheet

0-1: $8.94
