Product Summary

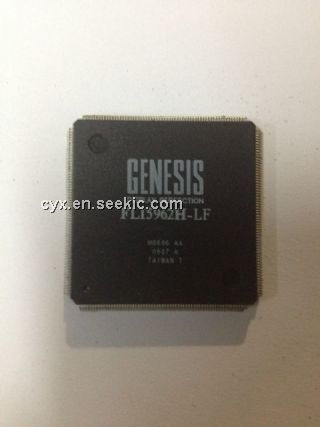

The FLI5962H-LF is a single-chip LCD TV controller. The FLI5962H-LF includes an integrated 3D Digital Video Decoder with Faroudja DCDi CinemaTM video format conversion, video enhancement, and noise reduction. The level of video quality that could previously only be seen on an exclusive Faroudja Home Theater System is now available in a single-chip solution. An embedded microprocessor and a versatile OSD in a single device will facilitate rapid development of a reliable and attractive product. Applications are (1)LCD and PDP TV; (2)DLPTM, LCD and LCOS Front and Rear Projection; (3)DVD RW and PVR.
Parametrics
FLI5962H-LF absolute maximum ratings: (1)VCCINT Supply voltage With respect to ground: –0.5 to 3.6 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI DC input voltage: –2.0 to 5.75 V; (4)IOUT DC output current, per pin: –25 to 25 mA; (5)TSTG Storage temperature No bias: –65 to 150 ° C; (6)TAMB Ambient temperature Under bias: –65 to 135 ° C; (7)TJ Junction temperature PQFP, RQFP, TQFP, and BGA packages, under bias: 135 ° C; (8)Ceramic PGA packages, under bias: 150 ° C.
Features
FLI5962H-LF features: (1)Integrated 3D Video Decoder; (2)Flexible Digital and Analog Capture; (3)Faroudja DCDi CinemaTM Format Conversion; (4)VBI Signal Processing; (5)Flexible x16 or x32 DDR Memory Interface; (6)Faroudja TrueLifeTM Video Enhancer; (7)Picture-in-Picture (PiP); (8)Advanced Color Management; (9)On-Chip Microprocessor; (10)Advanced Bitmapped OSD Controller; (11)LCD Overdrive.
Diagrams
