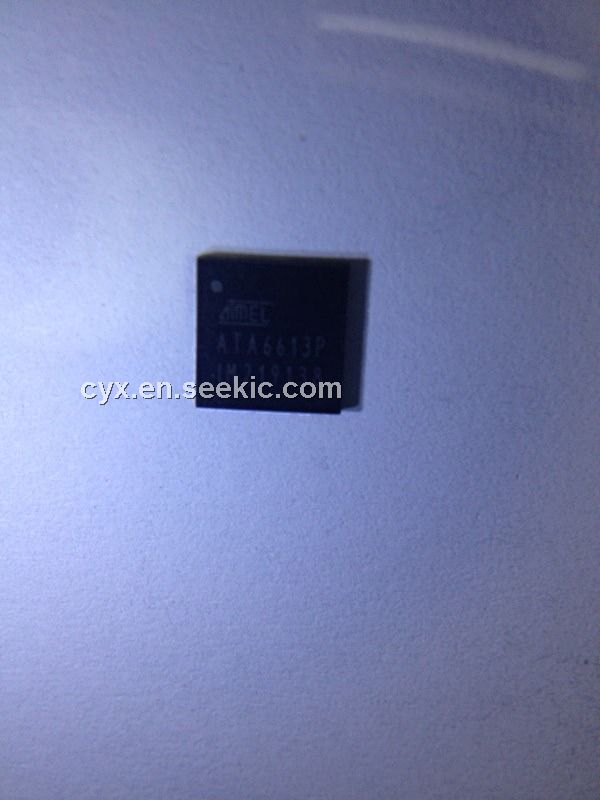

Product Summary
The ATA6613P is a System-in-Package (SiP) product, which is particularly suited for complete LIN-bus slave-node applications. The ATA6613P supports highly integrated solutions for in-vehicle LIN networks. The ATA6613P is the LIN-system-basis-chip (LIN-SBC) ATA6624, which has an integrated LIN transceiver, a 5V regulator and a window watchdog. Applications are (1)automotive keyless entry and passive entry go (handsfree car access); (2)tire pressure monitoring systems; (3)remote control systems; (4)alarm and telemetering systems; (5)energy metering; (6)home automation.
Parametrics
ATA6613P absolute maximum ratings: (1)Supply voltage VS VS: –0.3 to +40 V; (2)Pulse time ≤ 500 ms Ta = 25°C Output current IVCC ≤ 50 mA VS: +40 V; (3)Pulse time ≤2 min Ta = 25°C Output current IVCC ≤ 50 mA VS: 27 V; (4)Logic pins (RxD, TxD, EN, NRES, NTRIG, WD_OSC, MODE, TM): –0.3 to +5.5 V; (5)Output current NRES INRES: +2 mA; (6)ESD HBM following STM5.1 with 1.5 kΩ: 150 pF; (7)Junction temperature Tj: –40 to +150 °C; (8)Storage temperature Ts: –55 to +150 °C; (9)Thermal shutdown of VCC regulator: 150 to 170 °C; (10)Thermal shutdown of LIN output: 150 to 170 °C; (11)Thermal shutdown hysteresis: 10 °C.
Features
ATA6613P features: (1)Single-package Fully-integrated AVR 8-bit Microcontroller with LIN Transceiver, 5V Regulator and Watchdog; (2)Very Low Current Consumption in Sleep Mode; (3)8 Kbytes/16 Kbytes Flash Memory for Application Program (ATA6612/ATA6613); (4)Supply Voltage Up to 40V; (5)Operating Voltage: 5V to 27V; (6)Temperature Range: Tcase –40°C to +125°C; (7)QFN48, 7 mm × 7 mm Package.

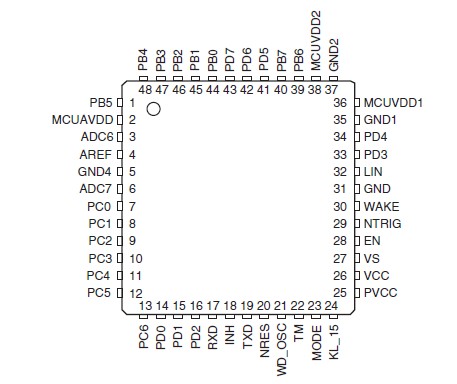

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ATA6613P-PLPW |
Atmel |
8-bit Microcontrollers (MCU) ATmega 168 Multi-Chip Mod. |
Data Sheet |
Negotiable |
|
||||||
 |
ATA6613P-PLQW |
Atmel |
8-bit Microcontrollers (MCU) 16kB flash |
Data Sheet |
|
|
||||||
