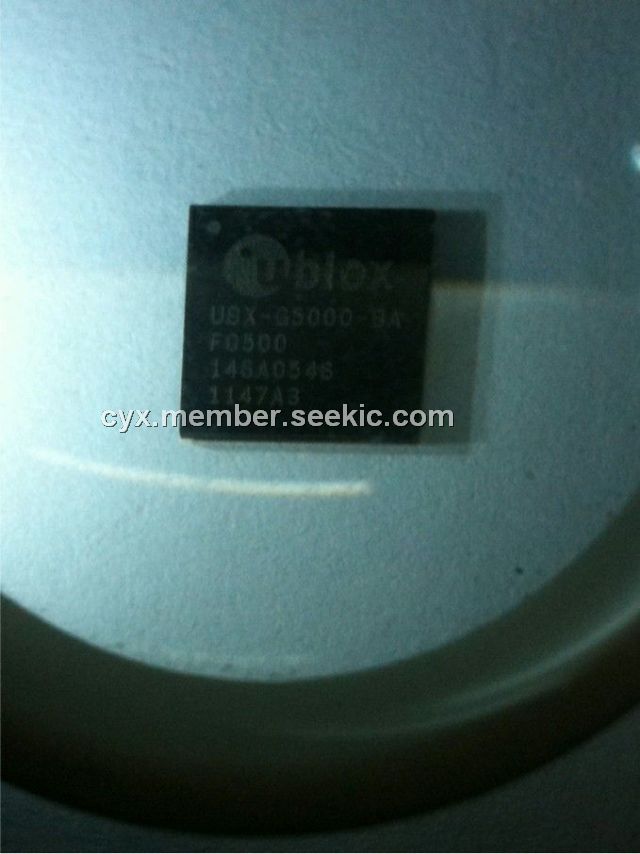

Product Summary

The UBX-G5000-BT is an u-blox 5 Single Chips and Chipset. Featuring the fastest acquisition on the market, these chips were also developed with cost-effectiveness in mind. The minimal BOM requires as few as 19 passive components, the chips include an integrated LDO and LNA, there is no need for an external Flash EPROM and TCXOs as well as lower cost crystals are supported.

Parametrics

UBX-G5000-BT absolute maximum ratings: (1)Operating Temp.:-40°C to 85°C; (2)Voltage range:1.4 to 3.6 V.

Features

UBX-G5000-BT features: (1)50-channel u-blox 5 engine with over 1 million effective correlators ; (2)<1 second Time To First Fix for Hot and Aided Starts ; (3)-160dBm SuperSense tracking sensitivity ; (4)Accelerated startup at weak signals with KickStart feature ; (5)Supports AssistNow ; (6)Online and AssistNow ; (7)Offline A-GPS services; OMA SUPL compliant ; (8)High immunity to jamming ; (9)Hybrid GPS, GALILEO and SBAS (WAAS, EGNOS, MSAS, GAGAN) engine ; (10)4 Hz position update rate ; (11)RoHS compliant (lead-free) and green (no halogens).

Diagrams

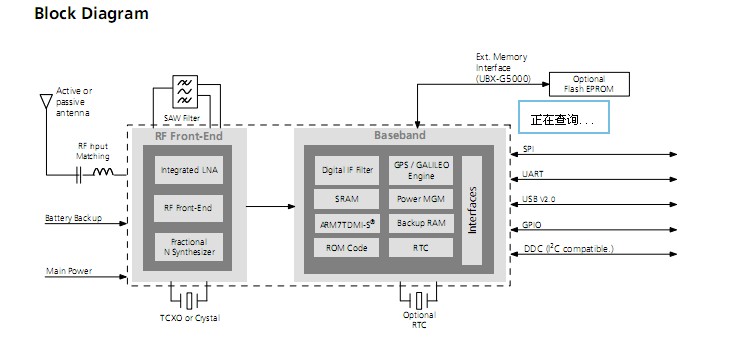

UBX-G5000-BT block diagram
