Product Summary

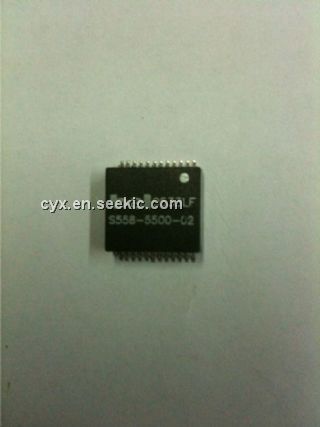

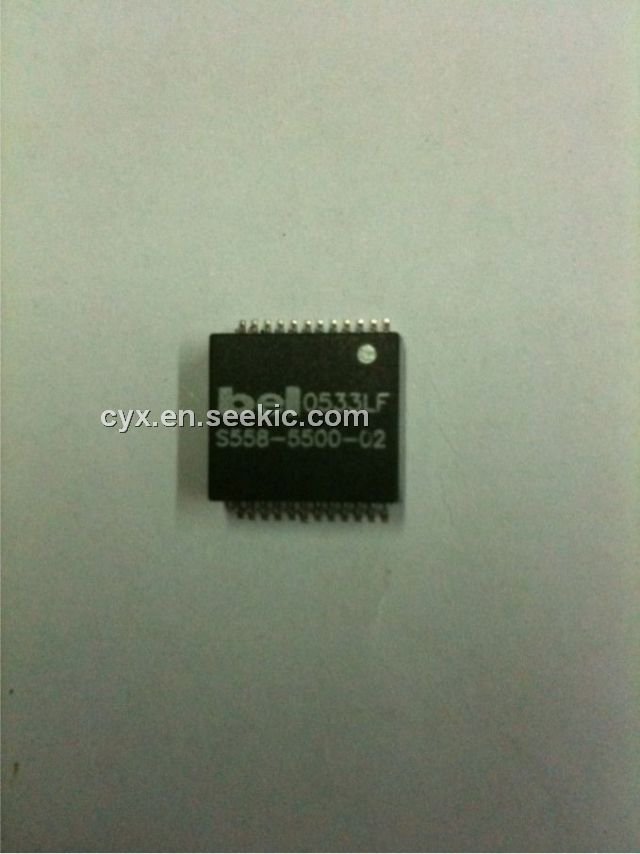

The S558-5500-02 is a broadband transformer.

Parametrics

S558-5500-02 absolute maximum ratings: (1)Interwinding Capacitance: 25pF; (2)Leakage Inductance: 0.25μH; (3)DCR: 1Ω.

Features

S558-5500-02 features: (1)Support 10 Mbps and 100 Mbps VoIP applications; (2)Compliant with IEEE 802.3 standards; (3)Designed to meet 350mA balanced DC line current; (4)350μH OCL with 8mA bias applied from 0 to 70℃; (5)Minimum interwinding breakdown voltage of 1500 Vrms.

Diagrams

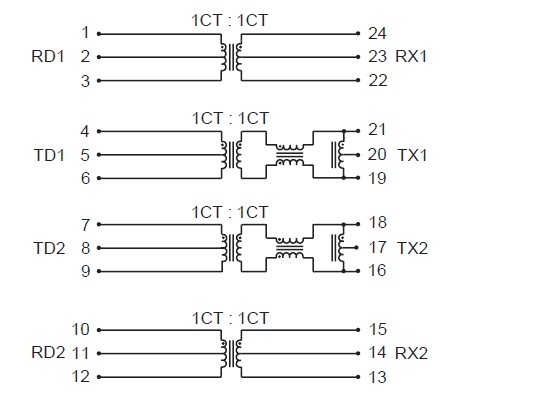

S558-5500-02 pin connection
