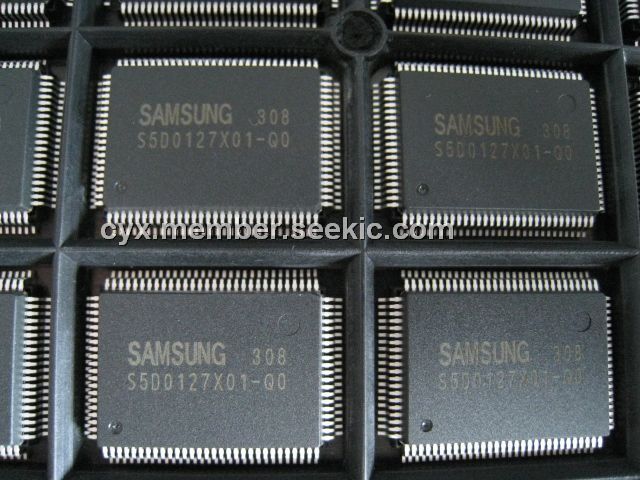

The S5D0127X01-QO is a video decoder / scaler device that converts analog NTSC, PAL or SECAM video in composite, S-video, or component format to digitized component video.The S5D0127X01-QO also decodes Intercast, Teletext, Closed Caption, and WSS data with a built-in bit data slicer. And this device can be used in multimedia, digital video, video capture / editing applications.
Parametrics
S5D0127X01-QO absolute maximum ratings:(1)5-V supply voltage (measured to VSS): -0.5 to +7.0 V;(2)3.3-V supply voltage (measured to VSS): -0.5 to +4.5 V;(3)Voltage on any digital pin: -0.5 to (VDD+0.5) V;(4)Ambient operating temperature (case): -35 to +100 °C;(5)Storage temperature: -65 to +150 °C;(6)Junction temperature: 150 °C;(7)Vapor phase soldering (1 min.): 220 °C.
Features
S5D0127X01-QO features:(1)Simultaneous scaled and non-scaled digital output ports outputs for 8-bit mode.; (2)Direct access to scaler via bi-directional digital port.; (3)Programmable Gamma correction table; (4)Programmable timing signals; (5)Industry standard IIC interface; (6)Analog square pixel or CCIR 601 sample rates; (7)Programmable luma bandwidth, contrast, brightness, and edge enhancement; (8)Programmable chroma bandwidth, hue, and saturation; (9)High quality horizontal and vertical down scaler; (10)6 analog inputs: 3 S-video, 6 composite, or 1 3-wire YCbCr component video.

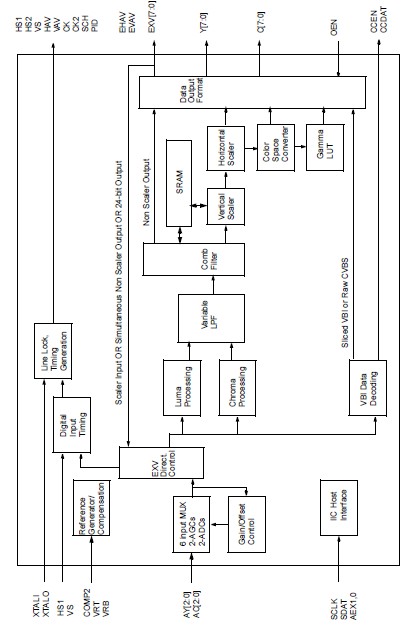

Diagrams
 |
