Product Summary

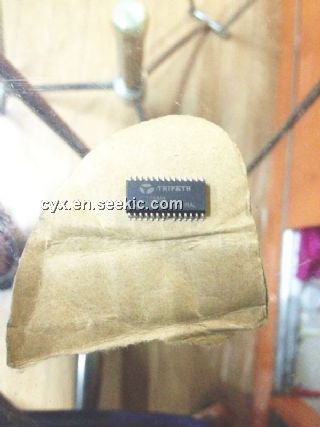

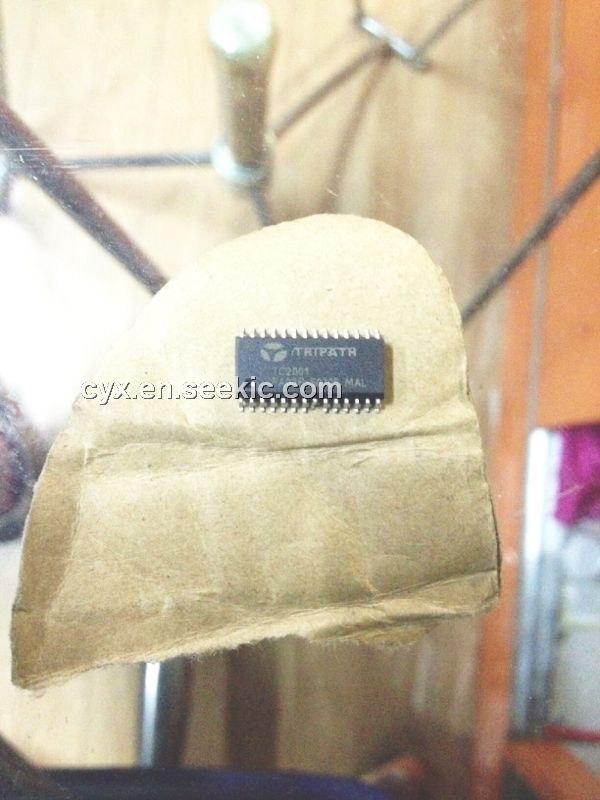

The TC2001 is a two - channel, 200W ( 6 Ω ) per channel Amplifier Driver that uses the proprietary Digital Power Processing technology of Tripath. It offers both the audio fidelity of Class-AB and the power efficiency of Class - D amplifier. The applications of the TC2001 include: (1)Powered DVD Players; (2)Audio/Video Amplifiers & Receivers; (3)Automobile Power Amplifiers; (4)Subwoofer Amplifiers; (5)Pro-audio Amplifiers.

Parametrics

TC2001 absolute maximum ratings: (1)V5 5V Power Supply: 6 V; (2)Vlogic Input Logic Level: V5+0.3V V; (3)TA Operating Free-air Temperature Range: -40℃ to +85 ℃; (4)TSTORE Storage Temperature Range: -55℃ to 150 ℃; (5)TJMAX Maximum Junction Temperature: 150 ℃; (6)ESDHB ESD Susceptibility – Human Body Model All pins: 2000 V.

Features

TC2001 features: (1)Class-T architecture; (2)Pin compatible with Tripath TK2350 Chipset; (3)Proprietary Digital Power Processing technology; (4)Audiophile Sound Quality: 0.012% THD+N @ 60W, 8Ω; 0.02% IHF-IM @ 30W, 8Ω; (5)High Efficiency: 93% @ 120W @ 8Ω; 91% @ 150W @ 6Ω; (6)Output over-current protection; (7)Over- and under-voltage protection; (8)Over-temperature protection.

Diagrams

TC2001 pin connection
